customize designed alloy wire factory copper nickel wires all size

copper-based heating resistance alloy wire has lower elecrical resistance, good echanical, excellent welding and anti-corrosion properties. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. typically used in high current applications requiring a high level of precision

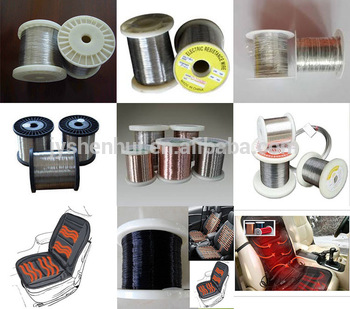

 Mainly products of alloy wires of Senphus

1.Copper Nickel alloy series:

CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44 etc.

2.Precision Resistance wires:

Constantan-type(6J40); diameter from 0.020mm~1.600mm

Manganin-type(6J8,6J12,6J13); diameter from 0.020mm~6.300mm

Karma(Ni-Cr-Al-Fe)(6J22); diameter from 0.018mm~1.50mm

3.High resistance series:

Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30,Cr20Ni20 etc.

Diameter from 0.018mm~1.600mm

4.Monel alloy wire & Pure Nickel Wires:

Ni66Cu30(Monel400) and Ni70Cu28

N6(Ni>99.5%),N8(Ni>98.5%)

5.PTC Thermistor Alloy wires:

P-4500, P-4000, P-3800, P3500, P3000, P-2500

6.Nitinol wires dia.from 0.08mm~5.00mm

7.Stranded wires(CX1201, CX1207) used for heating wire, heating cable and car seat etc.

8.Thermocouple wires:

Nicr-NiSi(Type K) KP→Ni:Cr≈90:10

              KN→Ni:Si≈97:3 temperature range(-200~1300℃)

NiCr-CuNi(Type E) EP→Ni:Cr≈90:10

               EN→Cu:Ni≈55:45 temperature range(-200~900℃)

Fe-CuNi(Type J) temperature range(0-750℃)

Cu-CuNi(Type T) temperature range(-200~350℃)

NiCrSi-NiSiMg(Type N)  NP→Ni:Cr:Si≈84.4:14.2:1.4

                    NN→Ni:Si:Mg≈95.5:4.4:0.1 temperature(-200~1300℃)

9.Thermocouple extension wire:

Mainly products:Type NX, EX, JX, TX, SC/RC, KCA, KCB. Widely used in temperature measurement system

Certification

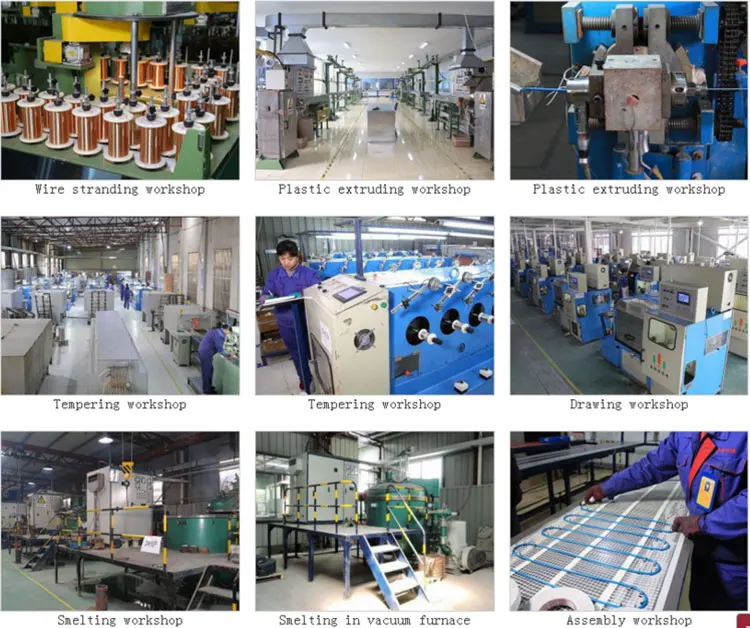

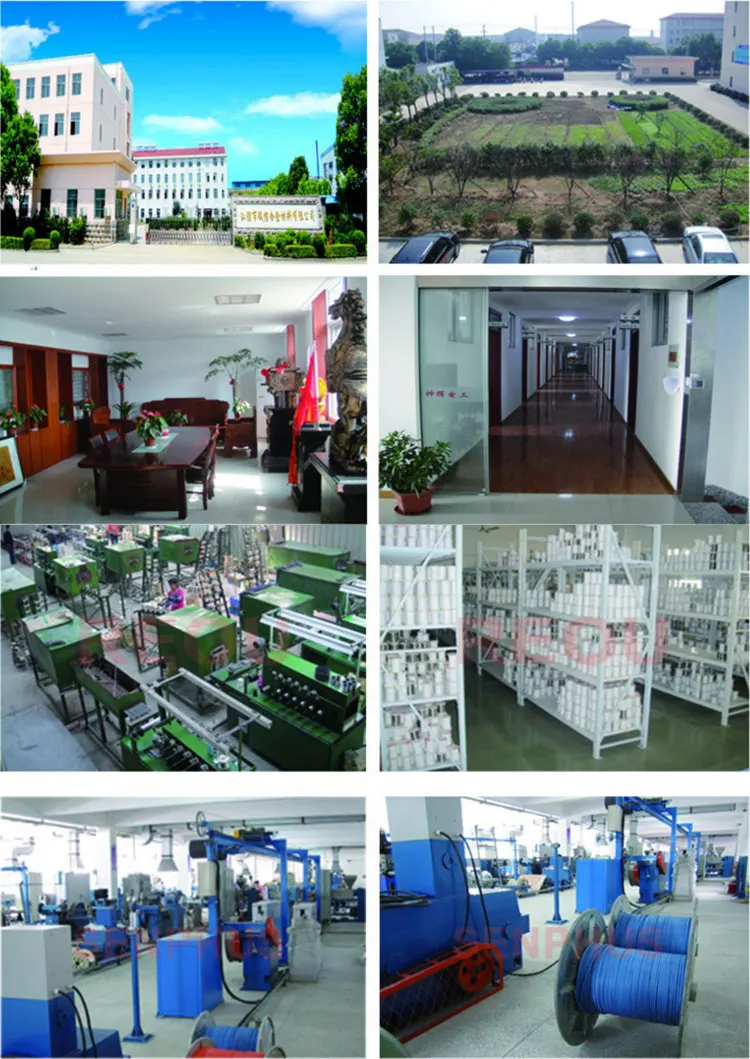

Welcome to visit our company
